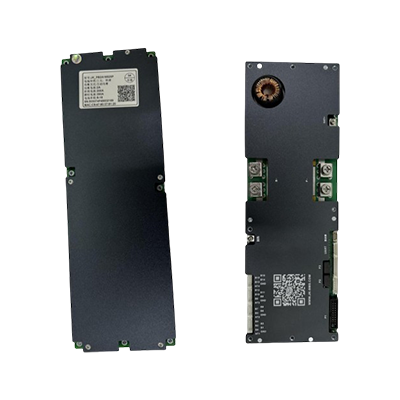

The Battery Management System (BMS) is the heart of any solar storage setup, but users on forums like DIY Solar Power often complain about inaccurate displays, faulty temperature readings, inverter compatibility issues, and complex installations. Enter the JK PB2A16S20P V19 BMS—a game-changer designed for LiFePO4, Li-ion, and LTO batteries. Compatible with Growatt, Deye, and Victron inverters, this upgraded BMS tackles your pain points, making your energy storage system smarter and more reliable.
Core Features: Next-Level Performance for Solar Storage
- 2A Active Balancing: 2000mA active balance current ensures fast voltage equalization for 7-16S battery packs (Li-ion 7-16S, LiFePO4 8-16S, LTO 14S), extending battery life.
- 200A Continuous Charge/Discharge: Handles high-power demands for home solar storage and off-grid systems with rock-solid stability.

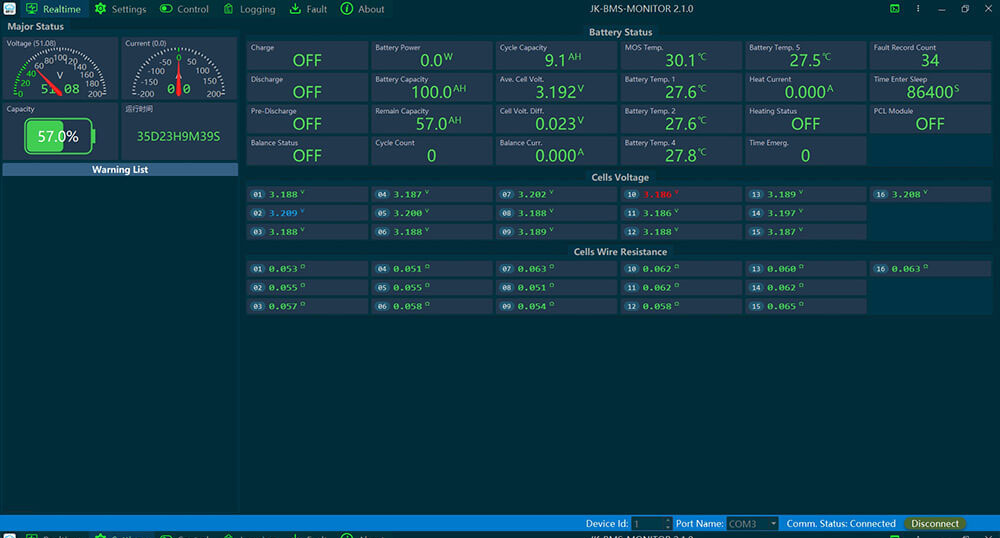

- High-Precision Monitoring: Single-cell voltage detection (0-5V, <5mV typical error), total voltage accuracy (<0.5% FSR), and SOC estimation (<8% error) deliver reliable data.
- 4.3-Inch TFT LCD Display: Upgraded 480x272 resolution screen with 300nit brightness clearly shows voltage, SOC, and temperature (-40°C to 125°C). V19 firmware fixes earlier LCD communication bugs.
- Six-Layer Safety Protection: Guards against overcharge, over-discharge, overcurrent, short circuits, overheating, and poor connections for maximum safety.
- Smart Connectivity: Built-in Bluetooth for Android/iOS monitoring, CAN/RS485 protocols (supporting Pylontech, Growatt, Victron), and easy USB/RS485 firmware updates to prevent bricking.
- Low Power Consumption: <5mA operating (no communication), <2mA standby, ensuring energy efficiency.
Solving Your Pain Points
Based on user feedback from DIY Solar Power Forum, the V19 BMS addresses key issues head-on:
- Inaccurate or Blank LCD Display: Users reported blank screens or unreliable data. The V19 firmware, using the 015-JK BMS PBxx SERIES LCD Protocol V1.0, ensures stable, accurate display on the 4.3-inch TFT screen.
- Faulty Temperature Readings: Complaints about erroneous readings (e.g., -40°C) are resolved with an improved sensor design, supporting -40°C to 125°C with precision.
- Inverter Compatibility Issues: Earlier versions struggled with Growatt or Victron communication. V19 supports 14 CAN protocols (e.g., Deye, Victron) and 15 RS485 protocols, ensuring seamless integration.
- Complex Firmware Updates: Fears of bricking during updates are gone. V19 offers user-friendly USB/RS485 updates for hassle-free maintenance.
- Tricky Installation: DIY users found wiring confusing. The V19 uses a same-port wiring design with HY2.0mm-6P connectors and a 0.5m standard cable, plus clear instructions for easy setup.
Wiring Precaution for Safe Installation
To ensure safe and proper operation of the JK PB2A16S20P V19 BMS, follow these strict wiring steps:

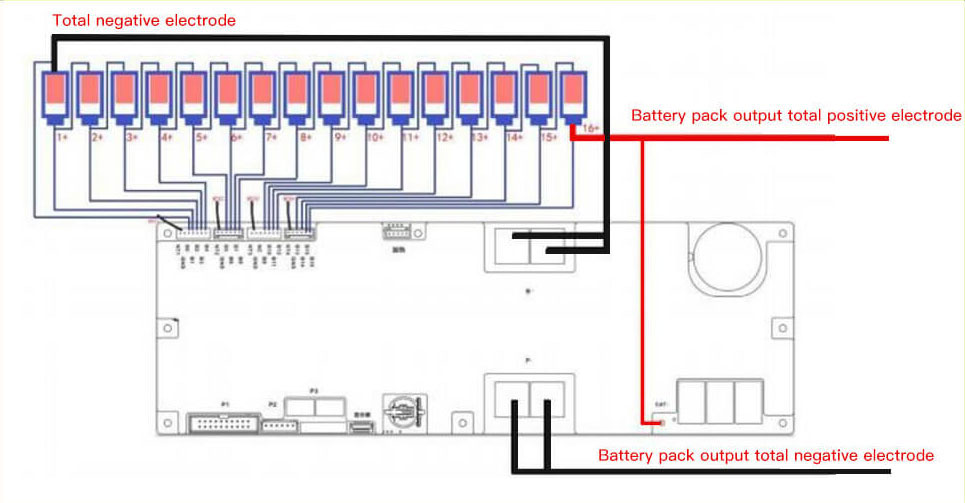

- Power-On Sequence: First, connect the total negative electrode (B-), then P-, followed by the total positive electrode (B+), and P+. Next, plug in the battery sampling line connector sequentially from low to high (e.g., 1 to 16). After powering on, press the activation key to start the BMS. Only connect a load or charger after all wires are installed.
- Power-Off Sequence: When disconnecting, first remove the load or charger. Then, unplug the battery sampling line connector in reverse order (high to low, e.g., 16 to 1). Finally, disconnect B+, P+, B-, and P- in that order.
Following this sequence prevents damage to the BMS and ensures safe operation for your solar storage system.
